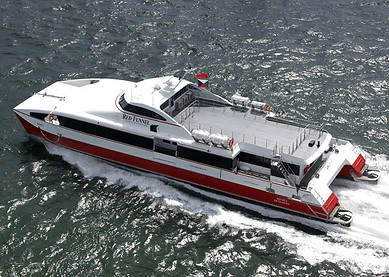

39m Passenger Ferry - Red Jet 4

This 39m Low-Wash passenger Catamaran was was designed and built at NWBS for Red Funnel Group, the oldest operating ferry company in the world. This design was selected from a competitive international tender and features engines a whole size smaller than other bidders.



The vessel carries 275 passengers and 29 dwt at 38 knots with two MTU 12V4000 @ 1,740kW. Using One2three's high-speed hull shape and lightweight construction techniques, contract speed was achieved at 80% MCR.


Length overall:  39.8 m

Length waterline:  35.8 m

Beam:  10.8 m

Speed:  38 knots, fully loaded

Crew:  0

Passengers:  275
